STUDIO POWER SHIELD
Here it is, our flag ship, Studio powershiled designed and built without any technical or cost compromises. we’ve used the best available and the most modern componnets to build this up in order to be really proud and able to introduce probably the best shileded power source, surge protection and most effective filtration device on the market.
Available in two case options:
- Stand alone case
- Rack solution
Features
Specifications
Packaging
Features
- 12 output shielded socket
- 3 stage surge protection, each output socket protected separately
- Cascading Audio Grade EMI filtration
- Separate dedicated CM+DM filter, for each output socket separated
- All output sockets insulated among themselves
- Direct offset filter

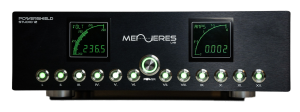

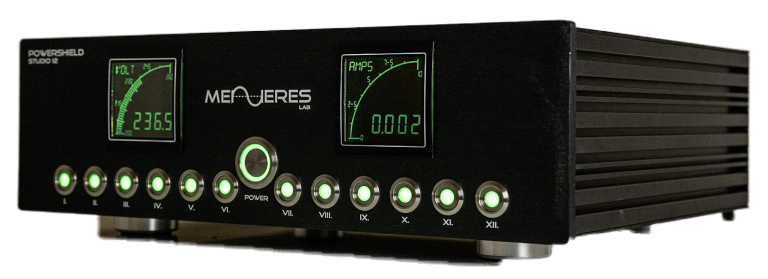

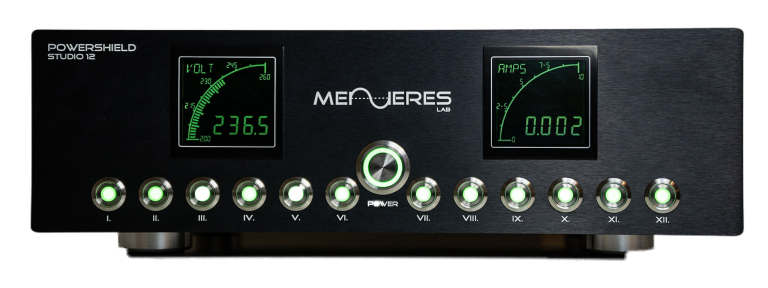

- 2 Digital VU meters on the front panel showing the voltage level in the mains and the current flowing through the filter
- Real-time monitoring of voltage level, immediate disconnection of outputs in case of overvoltage/undervoltage. (steering remains active and gauges are red)
- Global Soft-start
Overcurrent protection with a circuit breaker on the rear panel - All protective PE conductors connected to the STAR GROUND point to prevent earth loops.
- VF Hum filtration in PE conductor
- Surge protection active even in stand-by mode
- Each output socket can be switched off separately using the buttons on the front panel
- Main power switch with green backlight in the middle of the front panel
- Used the most modern components of the highest quality on the market
- Robust all-aluminum case
Specifications
- Weight: 11 kg
- Width: 450 mm
- Height: 150 mm
- Depth: 370 mm
- Input connector: IEC
- Output connector: Schuko
- IP rating: 20
Packaging
- Studio power-shield
- Manual
- Shielded power cord
- Transport case
Attenuation up to 97 dBm
ultiMate 3 stage surge protectioN
shilded custom cords
designed to work in 20hz-20khz

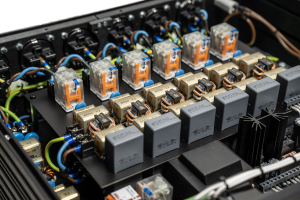

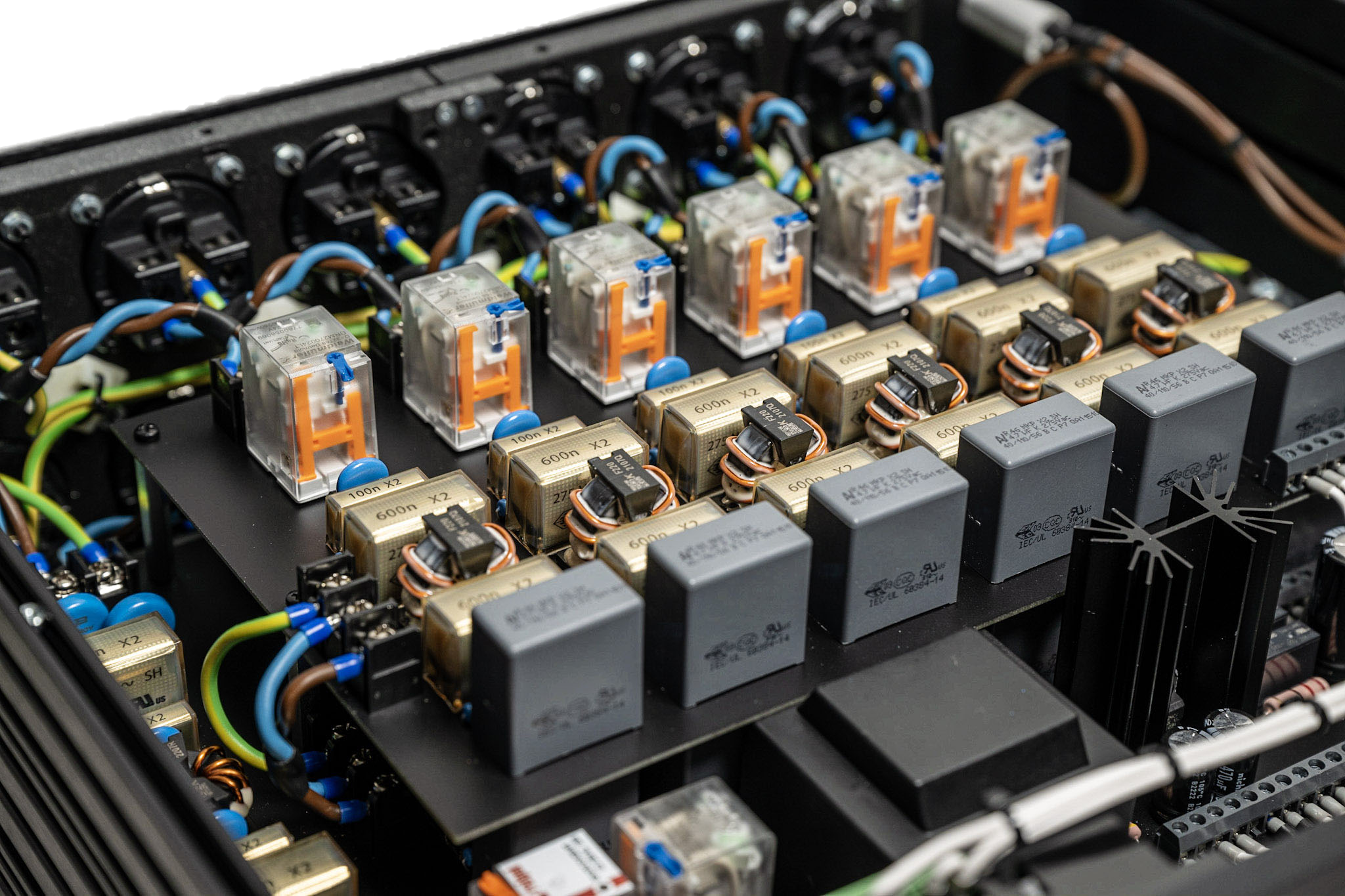

Cascading Audio Grade EMI filtration
Real-time monitorinG

Real-time amp meter
Real-time volt meter
Stand-by POWER BUTTON
12x socket power buttons
Aluminium custom case

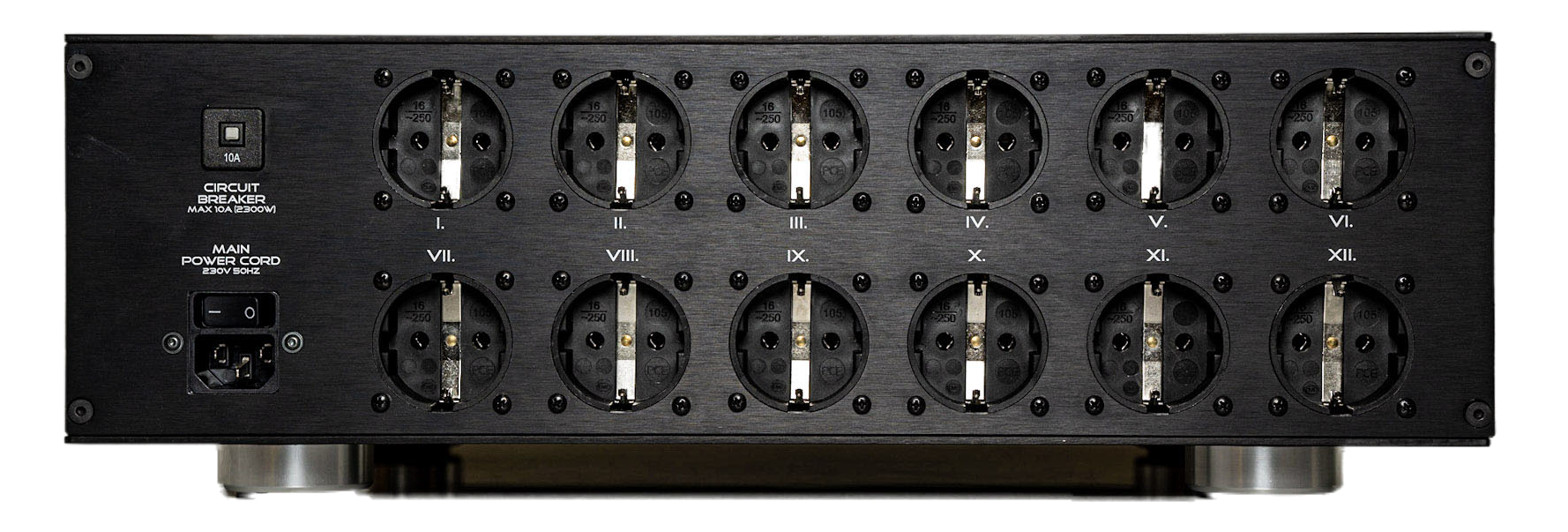

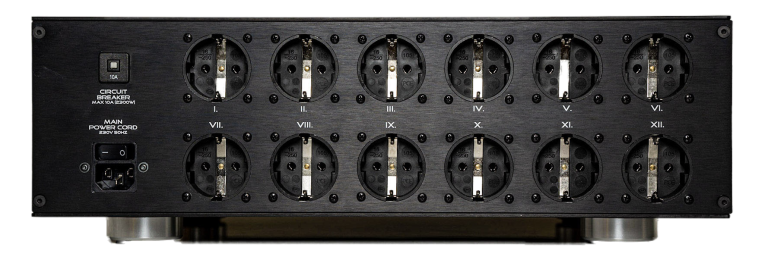

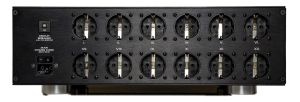

12x shilded power socket
Main power cord plug and main ON/OFF button
No standard fuse but circuit breaker
Rigid standing pods
